 TIC Type |
 재질 |
고품질 폴리아미드6 |
| 방수등급 |
IP 67(EN 60529) |
| 적용온도범위 |
-40℃ + 105℃ |
| 순간최대온도 |
+ 150℃ |
| 자기소화성 |
UL94-HB, UL94-Vo
Free of Halogen Phosphorous and cadmium |
| 색상 |
검정색, 회색 |
| 적용 |
공작기계, 산업기계, 자동화기계, 조선소, 전동차 등 캐논커넥터에 결합하기 위한 커넥터. |
| 국제인증 |
 | |
|
|
|
| 품번(Order No.) |
Shell Size |
나사규격
(Thread UNEF) |

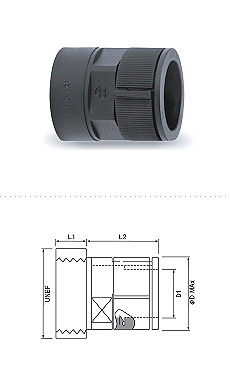

치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
D |
D1 |
L₁ |
L₂ |
| TIC-U1010B |
TIC-U1010G |
8S, 10S |
1/2-28UNEF |
21 |
14 |
13 |
34 |
10 |
| TIC-U1210B |
TIC-U1210G |
10SL, 12, 12S |
5/8-24UNEF |
21 |
14 |
13 |
34 |
10 |
| TIC-U1410B |
TIC-U1410G |
14, 14S |
3/4-20UNEF |
21 |
14 |
13 |
34 |
10 |
| TIC-U1212B |
TIC-U1212G |
10SL, 12S |
5/8-24UNEF |
25 |
17 |
13 |
34 |
12 |
| TIC-U1412B |
TIC-U1412G |
14, 14S |
3-4-20UNEF |
25 |
17 |
13 |
34 |
12 |
| TIC-U1812B |
TIC-U1812G |
18 |
1-20UNEF |
25 |
17 |
13 |
34 |
12 |
| TIC-U1616B |
TIC-U1616G |
16, 16S |
7-8-20UNEF |
30 |
22 |
13 |
34 |
16 |
| TIC-U1816B |
TIC-U1816G |
18 |
1-20UNEF |
30 |
22 |
13 |
34 |
16 |
| TIC-U2016B |
TIC-U2016G |
20, 22 |
1 3-16-18UNEF |
30 |
22 |
13 |
34 |
16 |
| TIC-U2316B |
TIC-U2316G |
20, 22 |
1 3-8-18UNEF |
30 |
22 |
13 |
34 |
16 |
| TIC-U2816B |
TIC-U2816G |
24, 28 |
1 7-16-18UNEF |
30 |
22 |
13 |
34 |
16 |
| TIC-U2222B |
TIC-U2222G |
20, 22 |
1 3/16-18UNEF |
41 |
30 |
15 |
34 |
22 |
| TIC-U2822B |
TIC-U2822G |
24, 28 |
1 7/16-18UNEF |
41 |
30 |
15 |
41 |
22 |
| TIC-U2828B |
TIC-U2828G |
24, 28 |
1 7/16-18UNEF |
47 |
36 |
15 |
45 |
28 |
| TIC-U3228B |
TIC-U3228G |
32 |
1 3/4-18UNEF |
47 |
36 |
15 |
45 |
28 |
| TIC-U3622B |
TIC-U3622G |
36 |
2-18UNS |
41 |
30 |
15 |
41 |
22 |
| TIC-U3628B |
TIC-U3628G |
36 |
2-18UNS |
47 |
36 |
15 |
45 |
28 |
| TIC-U3636B |
TIC-U3636G |
36 |
2-18UNS |
56 |
44 |
15 |
45 |
36 |
|
|
|
|
|
|
