 SWC Type |
 재질 |
고품질 폴리아미드6 + 황동니켈도금 |
| 방수등급 |
IP 67(EN 60529) |
| 적용온도범위 |
-40℃ + 105℃ |
| 순간최대온도 |
+ 150℃ |
| 자기소화성 |
UL94-HB, UL94-Vo
Free of Halogen Phosphorous and cadmium |
| 색상 |
검정색, 회색 |
| 적용 |
진동이 큰 철도차량에 사용되는 커넥터. | |
|
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
Pg |

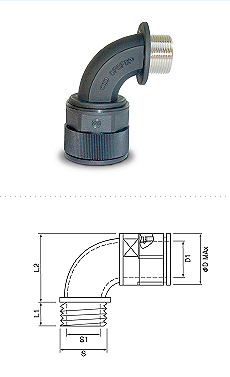

치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
L₁ |
L₂ |
D |
D₁ |
S₁ |
S |
| SWC-P077B |
SWC-P077G |
Pg 7 |
11 |
20 |
15.3 |
10.5 |
9.5 |
12.5 |
07 |
| SWC-P09B |
SWC-P09G |
Pg 9 |
13 |
28 |
21 |
14 |
10.6 |
15.2 |
10 |
| SWC-P11B |
SWC-P11G |
Pg 11 |
13 |
36 |
25 |
17 |
13.7 |
18.6 |
12 |
| SWC-P136B |
SWC-P136G |
Pg 13.5 |
13 |
41 |
30 |
22 |
15.0 |
20.4 |
16 |
| SWC-P16B |
SWC-P16G |
Pg 16 |
13 |
41 |
30 |
22 |
17.5 |
22.5 |
16 |
| SWC-P21B |
SWC-P21G |
Pg 21 |
15 |
50 |
41 |
30 |
21.7 |
28.3 |
22 |
| SWC-P29B |
SWC-P29G |
Pg 29 |
15 |
60 |
47 |
36 |
30.5 |
37.0 |
28 |
| SWC-P36B |
SWC-P36G |
Pg 36 |
19 |
76 |
56 |
44 |
40.1 |
47.0 |
36 |
| SWC-P48B |
SWC-P48G |
Pg 48 |
19 |
91 |
68 |
56 |
51.8 |
59.3 |
48 |
|
|
|
|
| 품번(Order No.) |
나사규격
(Thread)
Mertic |
치수(Dimensions in mm) |
적용전선관
(For tube size) |
| Black |
Gray |
L₁ |
L₂ |
D |
D₁ |
S₁ |
S |
| SWC-M107B |
SWC-M107G |
M12 x 1.5 |
11 |
20 |
15.3 |
10.5 |
8.7 |
12.0 |
07 |
| SWC-M10B |
SWC-M10G |
M12 x 1.5 |
13 |
28 |
21 |
14 |
8.7 |
12.0 |
10 |
| SWC-M12B |
SWC-M12G |
M16 x 1.5 |
13 |
36 |
25 |
17 |
12.6 |
16.0 |
12 |
| SWC-M16B |
SWC-M16G |
M20 x 1.5 |
13 |
41 |
30 |
22 |
15.2 |
20.0 |
16 |
| SWC-M22B |
SWC-M22G |
M25 x 1.5 |
15 |
50 |
41 |
30 |
19.4 |
25.0 |
22 |
| SWC-M28B |
SWC-M28G |
M32 x 1.5 |
15 |
60 |
47 |
36 |
26.2 |
32.0 |
28 |
| SWC-M36B |
SWC-M36G |
M40 x 1.5 |
19 |
76 |
56 |
44 |
34.5 |
40.0 |
36 |
| SWC-M48B |
SWC-M48GB |
M50 x 1.5 |
19 |
91 |
68 |
56 |
44.0 |
50.0 |
48 |
|
|
|
|
|
|
